Neurology
EMG 2 Channel Neurostim Machine
2 channel EMG / NCV / EP system for clinics and colleges.
₹2 lakh – ₹2.75 lakh

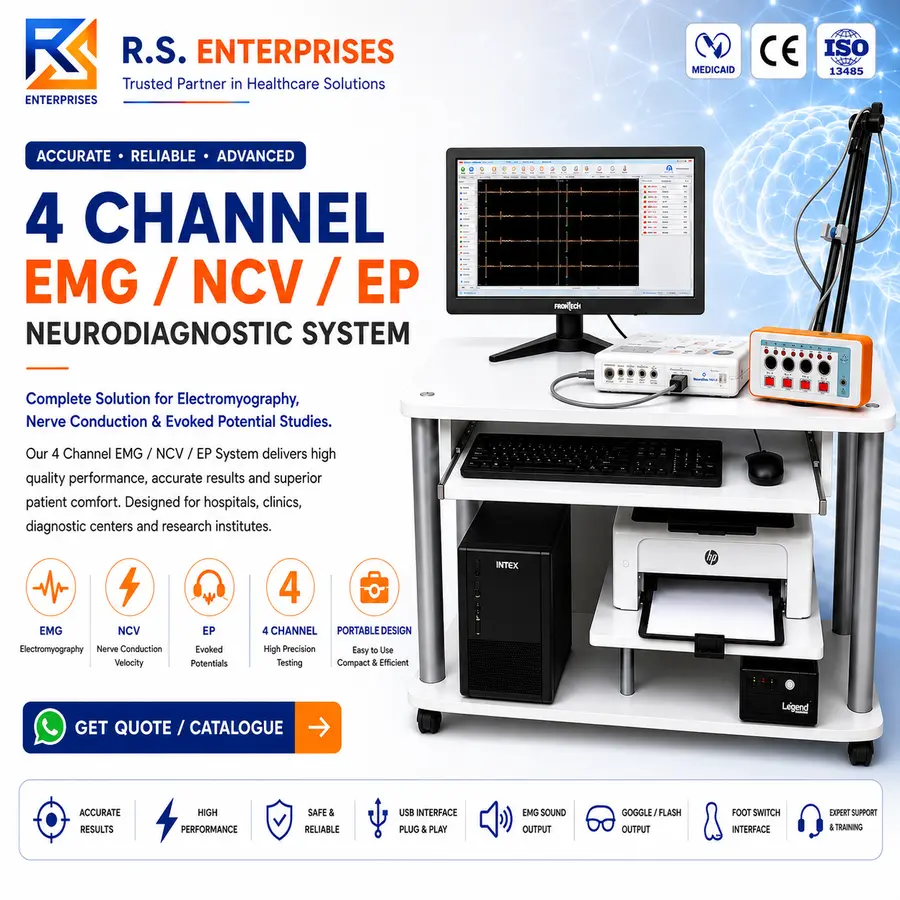

EMG / NCV / EP Machine (4 Channel) – Overview
The NEUROSTIM EMG/NCV/EP system is a complete neurodiagnostic workstation for neurologists, physiatrists and neurophysiology labs. It performs needle and surface EMG, motor and sensory nerve conduction studies and a full set of evoked potentials from a single USB-powered amplifier.
The base configuration has two channels and can be upgraded to four, which shortens multi-nerve and multi-modality studies. Auto-markers for latency, amplitude and conduction velocity, FFT and tabular analysis, split-screen review and a built-in nerve-muscle directory speed up reporting.
RS Enterprises supplies the NEUROSTIM range — including the 4 channel Neurostim, 2 channel EMG NCV Neurostim and ultra-portable EMG/NCV — with installation, training and after-sales support across West Bengal, Assam, Odisha, Jharkhand and the Northeast.
Key Features
- Dual channel, upgradeable to 4 channels
- Needle and surface EMG with insertional, spontaneous and polyphasic analysis
- Motor and sensory NCS including F-wave, H-reflex and blink reflex
- Evoked potentials: VEP, AEP/BAER, SSEP, P-300, MLR, LLR
- Real-time EMG storage and review with multiple sensitivity levels
- Auto-markers for latency, amplitude and velocity
- FFT and tabular analysis with split-screen display
- Windows 10/11 PC-based software
- USB-powered modular amplifier, foot switch and LED goggles for VEP
Technical Specifications
| Channels | 2 / 4 |
|---|---|
| Sensitivity | 0.1 – 500 µV/div & 1 – 5 mV/div |
| High cut filter | 100, 200, 500 Hz, 1 kHz |
| Low cut filter | 2, 20, 30, 100, 200, 500 Hz, 1 kHz |
| CMRR | > 100 dB |
| Input impedance | > 100 MΩ |
| Noise | < 2 µV p-p (10 Hz – 10 kHz) |
| A/D converter | 14-bit |
| Frequency | 50 / 60 Hz |
| Country of origin | India |
| Packaging | Steel box |
| Warranty | 1 year |
Specifications are as published by the manufacturer and may change with model updates. Manufacturer spec sheet (PDF).
Applications
- EMG for neurology and physiotherapy
- Nerve conduction studies for clinical diagnosis
- Evoked potential studies for academic and research use
- Hospitals, clinics and medical colleges
- Rehabilitation centres and neuroscience research labs
Warranty, Installation & Support
- 1-year manufacturer warranty
- Onsite installation, demo and operator training
- Online and onsite technical assistance
- Genuine spare parts with warranty compliance
- GeM, tender and institutional purchase documentation
- Export to Nepal, Bhutan and Bangladesh (IEC registered)
Looking for local supply? See Advanced EMG Solutions Across Eastern India or our service network.
EMG / NCV / EP Machine (4 Channel) – FAQs
What tests can the EMG machine perform?
Needle and surface EMG, motor and sensory nerve conduction, F-wave, H-reflex, blink reflex, repetitive nerve stimulation and evoked potentials (VEP, BAER/AEP, SSEP, P-300, MLR, LLR).
What is the price of an EMG NCV machine in India?
The published range for the NEUROSTIM system is ₹2 – 3 lakh (ex-GST), depending on channels (2 or 4) and EP accessories.
Can I upgrade from 2 to 4 channels?
Yes. The dual-channel system can be upgraded to 4 channels.
Is a portable EMG available?
Yes. An ultra-portable EMG/NCV unit is available for bedside and camp use — ask us for a quotation.
